Anti-Jamming GNSS CRPA Solutions
for UAV, UGV, and Tactical Platforms
Resilient Navigation Under Electronic Attack
✅Suppresses up to 3 jammers
✅J/S tolerance up to 100 dB
✅Ultra-Low SWaP: <150g, 65x65x22mm
Mission-Critical Applications
Anti-Jamming GNSS solutions for platforms operating in contested and interference-prone environments.
UAV / Aerial Platforms
- Dynamic null-steering against airborne and ground-based jammers
- Low-SWaP integration for mission-critical UAV platforms
UGV / Ground Platforms
- Resilient PNT under multipath and intentional interference
- Ruggedized anti-jamming architectures for UGVs
Maritime Platforms
- Stable GNSS tracking under maritime RF interference and multipath
- Ruggedized configurations for harsh marine environments
Advanced Anti-Jamming Product Portfolio
Mission-ready GNSS anti-jamming solutions for UAV, UGV, and maritime platforms.
Anti-Jamming CRPA Antennas
Compact-4-element CRPA antenna designed for multi-source interference suppression.
Key Advantages
♦ Suppresses up to 3 independent jammers
♦ Anti-jamming performance up to ≥90 dB
♦ Flexible integration with external GNSS receivers
Anti-Jamming CRPA Systems
All-in-one anti-jamming and GNSS receiver solution.
Key Advantages
♦ Built-in GNSS receiver
♦ Direct PVT output
♦ Anti-jamming capability up to ≥100 dB
♦ Plug-and-play integration
Directional Anti-Jamming Antennas
Cost-effective suppression for low-angle ground interference.
Key Advantages
♦ Focused directional suppression
♦ Effective against ground-based jamming
♦ Simple and compact deployment
Core Anti-Jamming Technology
Our anti-jamming solutions are built on Controlled Reception Pattern Array (CRPA) architecture and adaptive spatial filtering techniques. By combining multi-element array processing with interference suppression algorithms, the system can place deep nulls toward jamming sources while preserving reception of legitimate GNSS signals. This enables more resilient positioning and timing performance for UAV, UGV, and other mission-critical platforms operating in contested RF environments.
Adaptive Nulling Steering
Uses real-time adaptive spatial processing to form deep nulls toward interference sources and improve GNSS resilience in contested environments.
Multi-source Interference Mitigation
Supports effective mitigation of multiple jamming sources through array-based signal processing and anti-jamming control.
Compact System Integration
Supports low-SWaP integration for space-constrained platforms, with product paths that may include RF optimization and embedded GNSS receiver functionality.

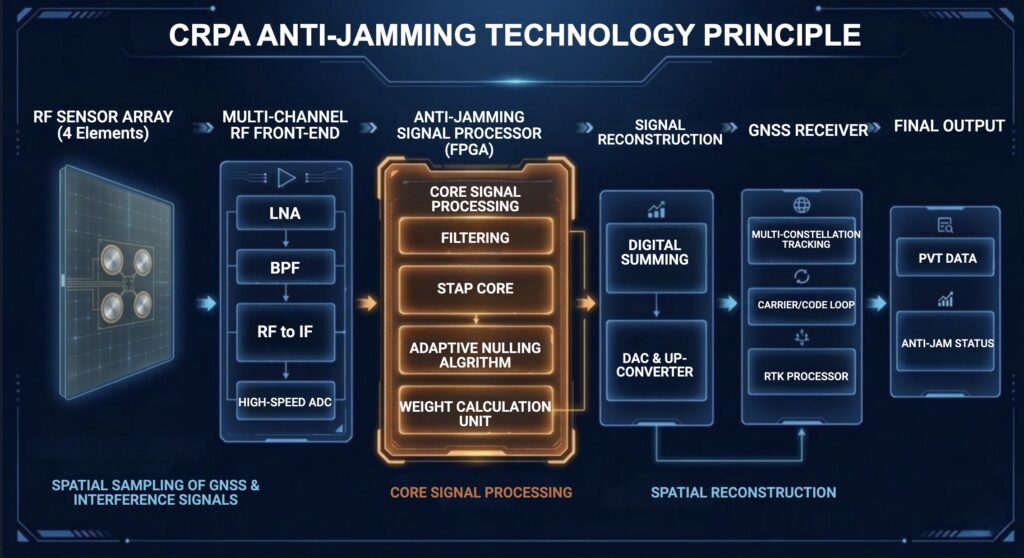

CRPA ANTI-JAMMING TECHNOLOGY PRINCIPLE
RF SENSOR ARRAY (4 Elements)
MULTI-CHANNEL RF FRONT-END
ANTI-JAMMING SIGNAL PROCESSOR (FPGA)
SIGNAL RECONSTRUCTION
GNSS RECEIVER
FINAL OUTPUT
LNA
BPF
RF to IF
HIGH-SPEED ADC
CORE SIGNAL PROCESSING
FILTERING
STAP CORE
ADAPTIVE NULLING ALGORITHM
WEIGHT CALCULATION UNIT
DIGITAL SUMMING
DAC & UP-CONVERTER
MULTI-CONSTELLATION TRACKING
CARRIER/CODE LOOP
RTK PROCESSOR
PVT DATA
ANTI-JAM STATUS
SPATIAL SAMPLING OF GNSS & INTERFERENCE SIGNALS
CORE SIGNAL PROCESSING
SPATIAL RECONSTRUCTION
Adaptive Null-Steering Against Multi-Source Jamming
The 4-element CRPA array dynamically identifies jamming signals and creates “Deep Nulls” in their direction. Even with multiple or mirrored jammers, the antenna maintains a high-gain beam toward GNSS satellites, ensuring uninterrupted PNT (Position, Navigation, and Timing) in contested environments.
Advanced Engineering & System Capabilities
Built to support the full path from platform integration to field deployment.
Platform-Specific Antenna Arrays
In-House Validation
Scalable Manufacturing
Multi-Domain Performance
Agile Algorithm Customization
Direct Access to Experts
Advanced Engineering & System Capabilities
Built to support the full path from platform integration to field deployment.
Platform-Specific Antenna Arrays
In-House Validation
Scalable Manufacturing
Multi-Domain Performance
Agile Algorithm Customization
Direct Access to Experts
Request a Custom Anti-Jamming Solution
Tell us your platform and mission requirements to receive a tailored GNSS anti-jamming solution proposal.
