Integrates an 8-channel dual-band CRPA antenna array, adaptive anti-jamming processing, and a GNSS receiver within a single rugged enclosure.
Compact 230 × 230 × 24 mm housing with a total weight of ≤1,250 g, combining dual-band anti-jamming and GNSS positioning in a highly integrated system.
Supports GPS L1/L5, Galileo E1, and BeiDou B1, providing multi-constellation GNSS reception and dual-frequency positioning capability.
Suppresses up to 7 simultaneous jammers per frequency band, with a specified anti-jamming capability of up to 100 dB J/S. Supports adaptive mitigation of broadband, narrowband, pulsed, sweep-frequency, and chirp interference.
The AJS-8L1/L5-230X is a lightweight, high-performance GNSS anti-jamming terminal that integrates an 8-channel dual-band (L1/L5) antenna array, an adaptive anti-jamming module, and an UBLOX receiver into a single rugged enclosure.
Supporting GPS L1/L5, GAL E1, and BDS B1, the unit provides active spatial defense against multi-source suppression interference. Its advanced adaptive filtering and optimized antenna geometry ensure exceptional signal integrity and continuous high-precision positioning in RF-contested environments.
The 16-element CRPA array dynamically identifies jamming signals and creates “Deep Nulls” in their direction. Even with multiple or mirrored jammers, the antenna maintains a high-gain beam toward GNSS satellites, ensuring uninterrupted PNT (Position, Navigation, and Timing) in contested environments.
| RF & Performance Specifications | |
|---|---|
| Antenna Elements | 16 Elements (8×L1+8×L5) |
| Frequency | GPS L1/L5, BDS B1/B2a, Galileo E1/E5a |
| Impedance | 50Ω |
| VSWR | ≤2 |
| Jammer / Signal (J/S) | ≥100dB (Single jammer), ≥85dB (Seven jammers) |
| Number of Jamming Sources | Up to 7 per frequency band |
| Burnout Resistance | 10W |
| GNSS Receiver | UBLOX F9P (Optional) |
| Protocol | NMEA 0183 or UBX |
| Electrical Specifications | |
| Voltage | 12 ~ 34VDC |
| Power Consumption | ≤25W |
| Mechanical & Environmental | |
| Dimensions | L230mm × W230mm × H24mm |
| Weight | ≤1250g |
| Connector | J30J-9ZK (Power/Data), SMA-K (RF) |
| Waterproof Rating | IP65 (Mounting) |
| Mounting | 4×Ø6.5mm mounting holes |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| RF & Performance Specifications | |
|---|---|
| Antenna Elements | 16 Elements (8×L1+8×L5) |
| Frequency | GPS L1/L5, BDS B1/B2a, Galileo E1/E5a |
| Impedance | 50Ω |
| VSWR | ≤2 |
| Jammer / Signal (J/S) | ≥100dB (Single jammer), ≥85dB (Seven jammers) |
| Number of Jamming Sources | Up to 7 per frequency band |
| Burnout Resistance | 10W |
| Number of Jamming Sources | Up to 7 per frequency band |
| GNSS Receiver | UBLOX F9P (Optional) |
| Protocol | NMEA 0183 or UBX |
| Electrical Specifications | |
| Voltage | 12 ~ 34VDC |
| Power Consumption | ≤25W |
| Mechanical & Environmental | |
| Dimensions | L230mm × W230mm × H24mm |
| Weight | ≤1250g |
| Connector | J30J-9ZK(Power/Data), SMA-K(RF) |
| Waterproof Rating | IP65 (Mounting) |
| Mounting | 4×Ø6.5mm mounting holes |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |

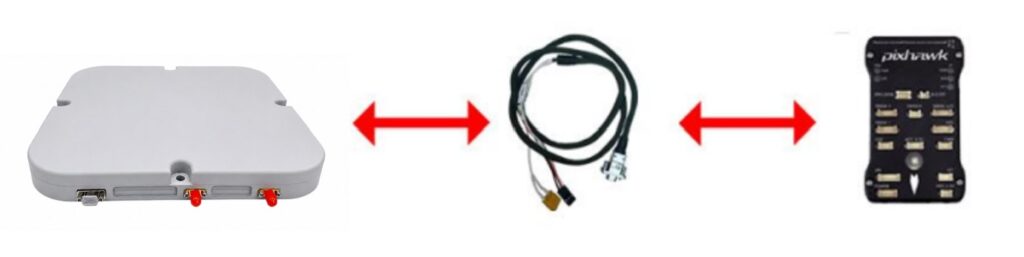

Power / Data Interface:
The power and communication interface uses a J30J-9ZK connector. DC power input and dual-channel TTL serial bus communication for control/status integration.
| Pin | Name | Type | Description |
|---|---|---|---|
| #1, 2 | Positive | Power | DC 12–34V input |
| #3, 4 | Negative | Power | Power ground |
| #5 | TXD0 | Output | Anti-jamming serial TTL output |
| #6 | RXD0 | Input | Anti-jamming serial TTL input |
| #7 | RXD1 | Input | Receiver serial TTL input |
| #8 | TXD1 | Output | Receiver serial TTL output |
| #9 | GND | Power | Ground |
For compact aerial platforms requiring low-SWaP anti-jamming capability and stable GNSS performance under contested RF conditions.
Suitable for unmanned ground systems operating in interference-prone, urban, or low-elevation jamming environments.
Designed for maritime and surface platforms requiring robust GNSS continuity in complex electromagnetic environments.
For compact aerial platforms requiring low-SWaP anti-jamming capability and stable GNSS performance under contested RF conditions.
Suitable for unmanned ground systems operating in interference-prone, urban, or low-elevation jamming environments.
Designed for maritime and surface platforms requiring robust GNSS continuity in complex electromagnetic environments.
